Global Actions

A global action writes a project global variable — Global.SetVariable(value). Unlike equipment, a global is concrete: it needs no mapping later.

The dialog

Add → Global Action lists your globals under Global Variables (plus the Generic setters at the top). Pick one, set the value, and the Result builds the action — here, resetting PartCount to 0:

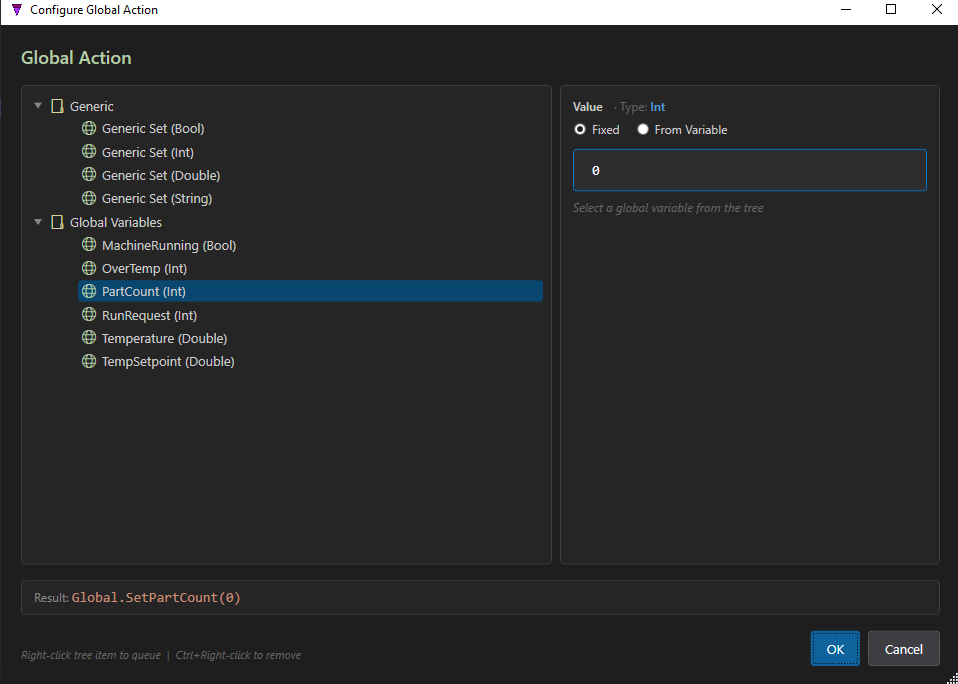

The Configure Global Action dialog: the tree lists Generic setters and Global Variables (MachineRunning, OverTemp, PartCount, RunRequest, Temperature, TempSetpoint); PartCount (Int) is selected, Value Fixed 0, Result reads Global.SetPartCount(0) — Pick a global, set the value; the **Result** reads `Global.SetPartCount(0)`.

Global.SetPartCount(0)

Save the Global Variables page first. Globals appear in this dialog once they are committed to the project. Each Composer page has its own Save button (separate from Save All) — click Save on the Global Variables page and your globals show up here.

From a variable, keys and records

Like equipment, a global's value can be fixed or read from another signal, and globals support map keys and record fields:

Form	Example
Set (fixed)	`Global.SetCounter(0)`
Set (from a signal)	`Global.SetTarget(Motor.IMotor.Speed)`
Map key	`Global.SetConfig['mode']('AUTO')`
Record field	`Global.SetRecordField('Status','Code',0)`

Concrete by nature. A global is a single project-wide variable, so a global action is complete as authored — there is nothing to map in the composite. Only the source of a from-variable value (if it references equipment) is mapped later.
